Bati support auto portant WC suspendu GROHE Rapide SL en stock

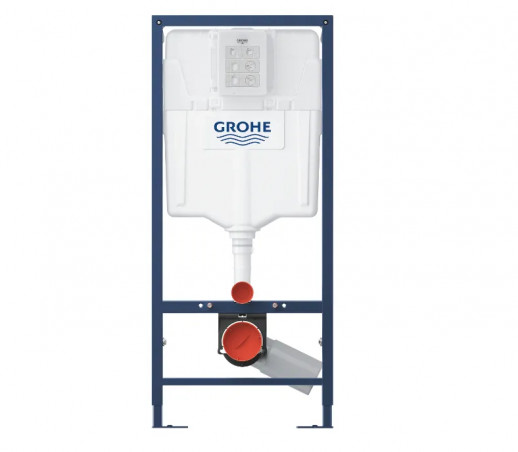

Rapid SL for WC

Featuring a heavy-duty support frame, this Rapid SL installation system can be mounted on load-bearing or non-load-bearing walls. The steel frame is certified to withstand weights in excess of 400 kg.

The GROHE QuickFix® system makes it easy to install in front of or in the wall.

Brackets supplied in box. Hose, inspection port and water supply are easy to connect, without tools.

Maintaining your bathroom is quick and easy with a wall-hung toilet and in-wall cistern. The GROHE Whisper® noise control system reduces the transmission of noise to surrounding rooms.

With GROHE EcoJoy® dual flush, you can reduce your water consumption by up to 50%.

Combined with the control plate of your choice, this system will be a great addition to any bathroom.

• For load-bearing or non-load-bearing wall
• Epoxy-finished steel frame
• For drywall, completely preassembled
• Possible installation of PMR toilet bowls (70 cm)
• With fixed fittings
• Height locking
• Delivered with fastening hardware
• Delivered with rods and nuts for wC bowl fixing
• Fixing spacing 180/230 mm
• PVC elbow pipe 100 mm
• Connection piece Ø 80
• Drain and supply liner
• Tank GD 2, 6-9 L, containing the following features:
• Factory setting 3 and 6 l
• Pneumatic release mechanism compatible with single-touch (interruptible) and double-touch (interruptible) control plate
• Side, top or rear feed
• Tank insulated against condensation
• Water supply with angle valve and flexible connection, tool-free quick connection
• No tools required for installation including protection during construction phase
• For vertical or horizontal mounting
• Including wall brackets 3855800M for wall installation

• For mounting small control plates, order template 40 911 000 separately

• For load-bearing or non-load-bearing wall
• Steel frame, epoxy-finished
• For drywall, completely pre-assembled
• Mounting of PMR bowls possible (70 cm)
