Jet 151 Mono surface pump stock limité

Jet 151 Mono JETLY difficult suction surface pump reference 010150

Product type : Surface pump

Description:

The Jet 151 Mono pump is a multistage pump with a high-performance venturi system, designed for difficult suction applications down to -8 meters or over long lengths. Well-known in the agricultural sector, this pump is also available pre-equipped for a booster.

Adapted to the natural waters of ponds, rivers and streams, this pump is also used for water stored in tanks, cisterns and rainwater harvesters.

Like all pumps in the JET family, it has the ACS (attestation de conformité sanitaire) certificate, enabling it to be used as a drinking water pump for domestic purposes.

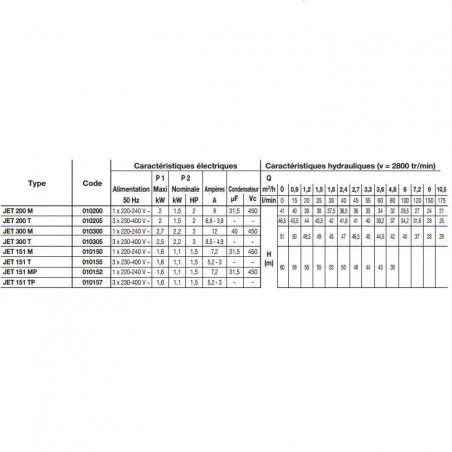

Technical specifications :

• Model: Jet 151 Mono

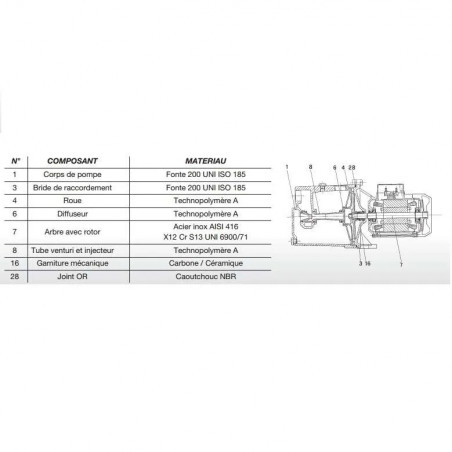

• Pump body material: Cast iron
• Discharge diameter: 1 » Femelle
• Suction diameter: 1 » 1/4 Female
• Packaging dimensions (L x W x H): 558 x 210 x 255 mm
• Weight with packaging: 23 kg
• Power output (P2) : 1.1 kW
• Motor power : 1.5 HP
• Supply voltage : 1 x 230V
• Rated current: 7.2 A
• Capacitor: 31.5 µF
• Flow/pressure: 3.6 m³/h / 4.3 bars
• Motor protection: IP 44
• Terminal box protection: IP 55
• Insulation class: F

Operating data :

• Operating range: 0.6 to 10.5 m³/h with head up to 62 m C.E.
• Pumped liquid: Clean, free of solids or abrasives, non-viscous, non-aggressive, non-crystallized and chemically neutral, close to the characteristics of water.
• Liquid temperature range: 0°C to + 35°C for domestic use (EN 60335-2-41) and 0°C to + 40°C for other uses.
• Maximum ambient temperature: + 40 °C
• Maximum operating pressure: 8 bar (800 kPa)
• Installation : Fixed in horizontal position

Advantages :

• High suction capacity: down to -8 meters thanks to venturi system.
• Versatility: Suitable for a wide range of uses, including watering, washing, cleaning and fluid transfer.
• Robustness: Cast-iron body for enhanced durability.
• Efficiency: Excellent hydraulic performance for a self-priming pump.
• Health compliance: ACS certification for use in drinking water.

Supplier: JETLY

Catalogue number: 010150
