Description
4-way valve, single-pipe, thermostatically controlled, vertical, to supply towel radiators.
Benefits:
– Isolation allowing the removal of the radiator with the key ref. 334.
– Marking « 0.5 » on the body designating the alpha coefficient of supply of the 50° radiator channel%factory preset
– Thermostatic mechanism (Kv 0,95)
– Interchangeability of thermostatic mechanisms without draining the system by means of the COMAP tool ref. 5831
Materials Body: Brass
Seals : Ethylene propylene
RTH mechanism
Axis: Stainless steel
Cap : ABS
Valve: EPDM

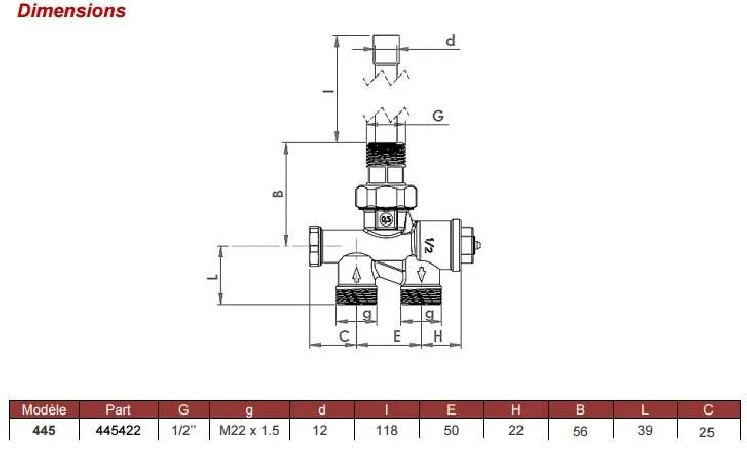

Specifications For standard water heating applications under the following conditions. Maximum pressure 10 bar. Delta pressure 0.6 bar. Maximum temperature 110°C. Vertical feed valve M28. Centre distance 35mm.
| Length (cm): | 15.1 |
|---|---|
| Width (cm): | 15 |
| Weight (kg) : | 0.5 |
| Packaging: | 1 |
| Threads : | 1/2″ (15×21) 5″ (125×137) |
| Main materials : | ABS Brass Stainless steel |
| Warranty: | 2 years |
| Origin: | made in europe |
| EAN13 | 3430650058583 |
