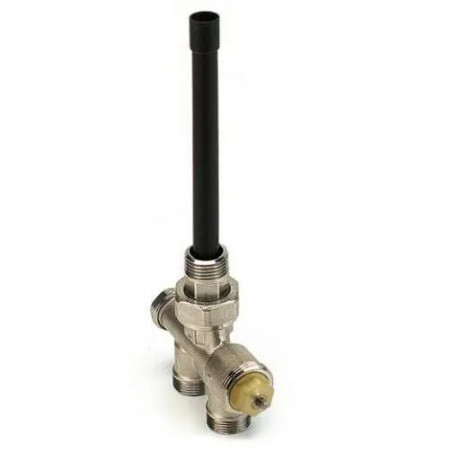

Single pipe valve with vertical feed M30 50mm distance

4-way valve, single-pipe, thermostatically controlled, vertical, to supply towel radiators.

Benefits:

– Isolation allowing the removal of the radiator with the key ref. 334.

– Marking « 0.5 » on the body designating the alpha coefficient of supply of the 50° radiator channel%factory preset

– Thermostatic mechanism (Kv 0,95)

– Interchangeability of thermostatic mechanisms without draining the system by means of the COMAP tool ref. 5831

Materials Body: Brass

Seals : Ethylene propylene

RTH mechanism

Axis: Stainless steel

Cap : ABS

Valve: EPDM

Specifications For standard water heating applications under the following conditions. Maximum pressure 10 bar. Delta pressure 0.6 bar. Maximum temperature 110°C. Vertical feed valve M30. Centre distance 50mm.
